Hi, The Serial number and Batch Number is used for tracking purpose. For the given scenario, the following setups to be done in AX. Inventory Dimension Serial number is to be activated in the Dimension group form and the corresponding dimernsion group is attached to the item Laptop.

• This article applies to Microsoft Dynamics AX for all regions. 'Inventory dimension Serial number must be specified.' The changes in the hotfix include an xpo fix to make sure you can post.
• Select the Lot No. Field, and then select a number from the Item Tracking Summary window. Choose the Select Entries action. The Select Entries window shows all lot or serial numbers.
• However, Batch Number for all 10 Lines, is kept Blank. Packing Slip is Posted. When Transaction against the Packing Slip are viewed, System assigns Different Batch Numbers for each of the Serial Numbers, instead of Single Batch Number for the entire Qty.

Applies To: Microsoft Dynamics AX 2012 R3

This topic describes how to enable serial numbers for use only in the sales process.

Prerequisites

The following table shows the prerequisites that must be in place before you start.

Enable serial number registration in the sales process

Before you can register serial numbers for products in the sales process, you must enable serial numbers for the sales process on the tracking dimension group, and assign the tracking dimension group to the product. You can enable serial numbers in the sales process for a tracking dimension group only if the tracking dimension group has not been used to create transactions.

When you enable serial numbers for the sales process in the tracking dimension group, all other selections for serial numbers are cleared except the Blank issue allowed check box. You can select the check box to allow products to be packed or invoiced without registering serial numbers.

To enable serial numbers for the sales process, follow these steps:

1. Click Product information management > Setup > Dimension groups > Tracking dimension groups.

2. In the Serial number row, select the Active in sales process check box.

3. Optional: To allow products to be issued without registering serial numbers, select the Blank issue allowed check box.

   Note

   Normally, the Capture serial field and the Active check box are not used when you register serial numbers in the sales process. However, if you have Microsoft Dynamics AX 2012 R3 CU10 or KB 3072929 installed, you can use the Capture serial field to specify the following:

   1. None – Use this option if you want let the user manually select where to capture sales serial number. This could be from the packing slip, invoice, picking list registration, or load lines.

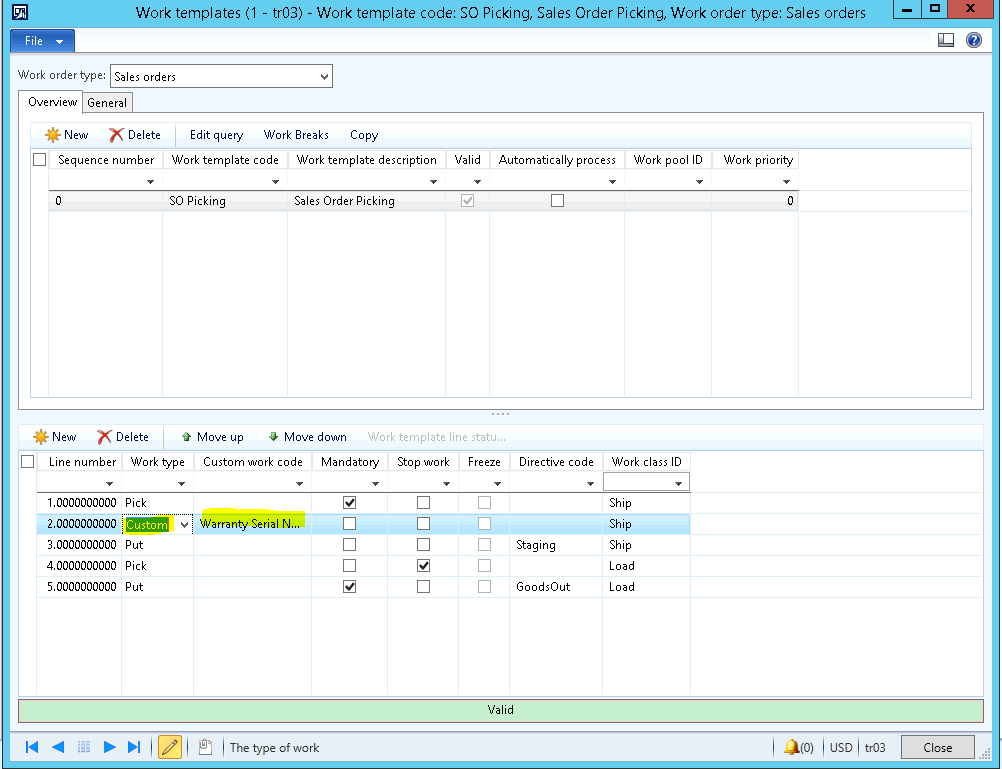

   2. Picking – Capture the sales serial number when picking more than one serial number controlled item, using the mobile device.

   3. Packing – Capture sales serial numbers when closing a container using the packing station.

   For more information on how to use these options, see the Dynamics AX SCM R&D Team blog

Register serial numbers on a packing slip or invoice

To register serial numbers on the packing slip or invoice for a sales order, follow these steps:

1. Click Sales and marketing > Common > Sales orders > All sales orders.

2. Create or select the sales order. For more information, see Sales orders overview.

3. To register serial numbers on the packing slip or invoice, do one of the following:

   • Packing slip - On the Action Pane, on the Pick and pack tab, in the Generate group, click Packing slip.

   • Invoice - On the Action Pane, on the Invoice tab, in the Generate group, click Invoice.

4. In the Posting invoice or Packing slip posting form, click the Lines tab, and then click Update line. Select Register serial numbers.

5. Register serial numbers by using one of the following methods:

   • If you are using a scanner, on the Action Pane, in the Set scan mode group, click Add. When you scan the serial number, the number appears in the list of serial numbers.

     Tip

     To remove a serial number, select Remove, and then scan the serial number again.

   • If you are typing the serial number, enter the number in the Serial number field, and then click Add.

     Note

     If blank issues are not allowed and a serial number cannot be read or scanned, you can add a blank registration for the item by clicking Not readable. If needed, you can update the serial number later. For more information, see the section titled “Change a registered serial number” in this topic.

Register serial numbers on a return order

To register serial numbers on a return order, create or select the return order, and then follow the steps for registering serial numbers for packing slips. The steps are described in the section titled “Register serial numbers on a packing slip or invoice” in this topic.

Change a registered serial number

You can change the serial numbers for packing slips or invoices only if the invoice is not posted.

To change a registered serial number, follow these steps:

1. Click Sales and marketing > Common > Sales orders > All sales orders.

2. Select the sales order, and then use the following steps to update the packing slip or invoice:

   • Packing slip - On the Action Pane, on the Pick and pack tab, in the Generate group, click Packing slip.

   • Invoice - On the Action Pane, on the Invoice tab, in the Generate group, click Invoice.

3. Click the Lines tab, and then click Update line. Select Register serial numbers.

4. On the Serial numbers form, select the serial number to change. Click Change serial number, and then enter or select the new serial number in the New serial number field.

View the serial numbers that were registered for a packing slip or invoice

To view the serial numbers that were registered for a packing slip or invoice, follow these steps:

1. Click Sales and marketing > Common > Sales orders > All sales orders.

2. Select the sales order, and then do one of the following:

   • To view the serial numbers that were registered on the packing slip, on the Action Pane, on the Pick and pack tab, in the Journals group, click Packing slip.

   • To view the serial numbers that were registered on the invoice, on the Action Pane, on the Invoice tab, in the Journals group, click Invoice.

3. Click the Lines tab, and then click Inquiries. Select Serial numbers.

Microsoft Serial Number
